SWISSON XSP-3B
Features:
DMX Splitter, Box, 5 outputs, 3pin XLR
• High reliability
• Amplifies DMX
• Regenerates DMX
• Reduces reflection problems
• Distributes DMX
• Optically isolated
• 5-pin and 3-pin XLR models
• Screw terminal models
• Installation, box, rack and double rack models
• 5 DMX outputs / 10 for double rack
• Switchable line termination
• Error display
DMX splitters are the backbone of any DMX512 installation. The XSP models offer highest reliability in professional use on tour or in the installation. The specially developed power supply ensures smooth operation even under difficult mains conditions. Each port is optically isolated and very well protected against transient overvoltages. The DMX signal is regenerated and amplified by the XSP without changing the DMX protocol timing. The XSP splitter reduces reflection problems and allows the DMX signal to be distributed over multiple lines. An integrated microcontroller constantly monitors the DMX protocol and indicates signal, or errors. A variety of XSP models are available to suit a wide range of applications. The box models have a thread for a clamp, as well as an eyelet for the safety rope. These models are portable and suitable for truss mounting. The rack and double rack models are for 19" rack systems. There are different connection types with 5-pin XLR, 3-pin XLR and pluggable screw terminals. Installation versions for wall mounting and direct wiring are also available.
Specifications:
• Connection: fixed cable with open ends
• Color: red/black
• Material: metal
• Mounting: M10 internal thread
• Power supply: internal
• protocol: DMX 512
• Signal distribution: 1x DMX in (3-pin) to 5 x DMX out (3-pin) + thru (3-pin)
• voltage: 100 - 240V, 50/60Hz

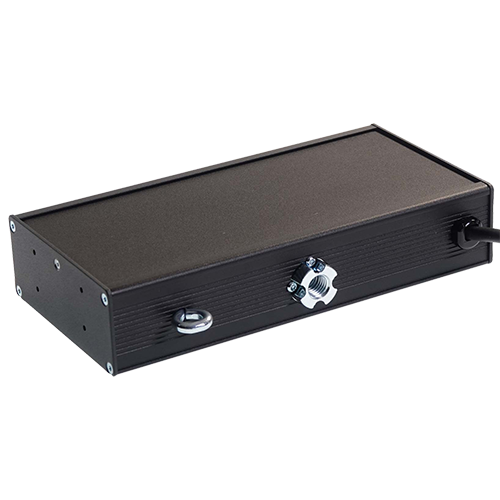

• Type: DMX splitter for truss mounting
• Switchable: end resistor
• Dimensions (WxDxH): 215x111x45mm
• Weight: 0,75 kg
• High reliability
• Amplifies DMX
• Regenerates DMX
• Reduces reflection problems
• Distributes DMX
• Optically isolated
• 5-pin and 3-pin XLR models
• Screw terminal models
• Installation, box, rack and double rack models
• 5 DMX outputs / 10 for double rack
• Switchable line termination
• Error display
DMX splitters are the backbone of any DMX512 installation. The XSP models offer highest reliability in professional use on tour or in the installation. The specially developed power supply ensures smooth operation even under difficult mains conditions. Each port is optically isolated and very well protected against transient overvoltages. The DMX signal is regenerated and amplified by the XSP without changing the DMX protocol timing. The XSP splitter reduces reflection problems and allows the DMX signal to be distributed over multiple lines. An integrated microcontroller constantly monitors the DMX protocol and indicates signal, or errors. A variety of XSP models are available to suit a wide range of applications. The box models have a thread for a clamp, as well as an eyelet for the safety rope. These models are portable and suitable for truss mounting. The rack and double rack models are for 19" rack systems. There are different connection types with 5-pin XLR, 3-pin XLR and pluggable screw terminals. Installation versions for wall mounting and direct wiring are also available.
Specifications:
• Connection: fixed cable with open ends
• Color: red/black
• Material: metal
• Mounting: M10 internal thread
• Power supply: internal
• protocol: DMX 512
• Signal distribution: 1x DMX in (3-pin) to 5 x DMX out (3-pin) + thru (3-pin)
• voltage: 100 - 240V, 50/60Hz
• Type: DMX splitter for truss mounting
• Switchable: end resistor
• Dimensions (WxDxH): 215x111x45mm
• Weight: 0,75 kg
Our Price
1 262.69 BGN
€ 645.60
€ 645.60
BUY NOW!
Availability of this item:
on request
on request
Warranty: 12 months
