Musicworld.bg - SWISSON XRC-CT15-B

External Contacts for XRC (15 Contacts)

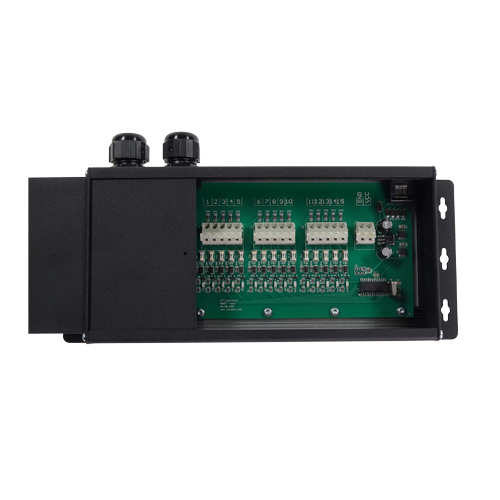

• External contact box with 15 dry contact inputs for the Swisson XRC-200 DMX Recorder/Replay Unit.
• Allows for the integration of external triggers to control recorded lighting sequences or playlists.
• Each input can be assigned to different sequences, playlists, or DMX channels, enabling fully customizable control setups.
• Ideal for installations requiring interactive or dynamic lighting control, such as in museums, retail displays, or entertainment venues.
• Compatible with various trigger types, including switches, push buttons, and sensors, to create responsive lighting events.
• Enhances the functionality of the XRC-200 by enabling physical control triggers for recorded lighting shows.
• Simple connection to the XRC-200 for seamless integration and easy configuration using the XRC-200 PC software.
• Perfect for interactive lighting designs and installations requiring real-time audience or environmental interaction.

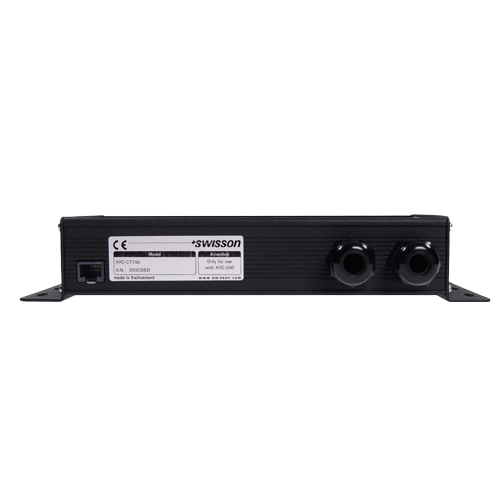

The Swisson XRC-CT15B is an external contact box designed to provide enhanced control functionality for the XRC-200 DMX Recorder/Replay Unit by offering 15 dry contact inputs. These inputs allow for customized integration of external triggers, making it an ideal solution for installations and applications requiring interactive or dynamic lighting control. Whether for architectural lighting, tradeshows, entertainment venues, or exhibitions, the XRC-CT15B expands the XRC-200's capabilities by enabling the use of physical triggers to control recorded lighting sequences or playlists.

The XRC-CT15B is easy to integrate into existing setups, allowing users to connect various types of triggers, such as switches, push buttons, or sensors, to activate specific lighting events or transitions stored in the XRC-200. Each of the 15 inputs can be individually assigned to different sequences, playlists, or specific DMX channels, giving lighting designers and technicians full flexibility in customizing how the system responds to user interactions or environmental changes.

Using the XRC-CT15B contact box, the XRC-200 becomes a powerful tool for creating immersive and reactive lighting experiences. This is especially useful in environments like museums, retail displays, or theme parks where lighting needs to respond to audience interaction or real-time events. The contact box is connected directly to the XRC-200, and the inputs can be configured through the XRC-200's software, allowing for intuitive setup and operation.

Specifications:

• Mains Supply: 100V-240V 50/60Hz
• Typical Power Consumption: 4W
• PC Connection: USB Type-B
• Operating Temperature: up to 113F
• DMX Channels: 1,024
• Memory: 256 M/bit Flash
• Sequences: 64
• Playlists: 10
• Playlist Steps: 64
• DMX Remote: Yes
• Autostart: Yes
• Standby: Yes
• Ignition Sequence: Yes
• Timer: Battery buffered
• Dry Contacts: 15 (with XRC-CT15b)
• DMX Inputs: 2
• DMX Outputs: 2
• XRC-200 PC Software: Included (Windows)
• Dimensions: 7.6 x 4.7 x 1.8 inches (without brackets for wall-mounting)
