Audio-Technica Hi-Fi & Phono AT-VM530xEN
Описание:
Dual Moving Magnet Cartridge


Features:

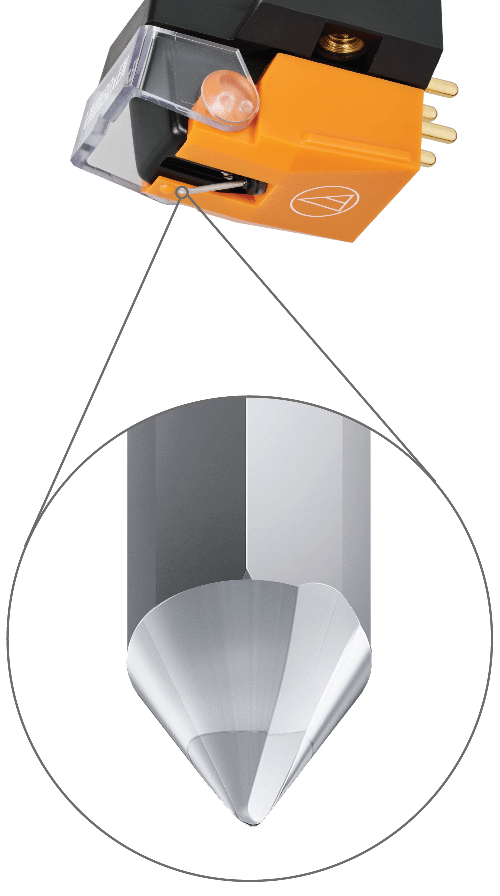

• AT-VMx dual moving magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
• 0.3 x 0.7 mil elliptical nude stylus tracks the record groove with accuracy for outstanding audio reproduction
• Significantly lighter stylus tip (compared to previous model) allows for more precise tracing of the record groove
• Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
• PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
• Centre shield plate between the left and right channels reduces crosstalk for clear stereo sound
• Threaded inserts make cartridge easier to mount, especially to integrated tonearms
• V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
• Durable low-resonance polymer housing
• Aluminium cantilever
• Compatible with any turntable headshell that accepts 1/2" cartridges
• Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application

*Excludes mono models



Specifications:

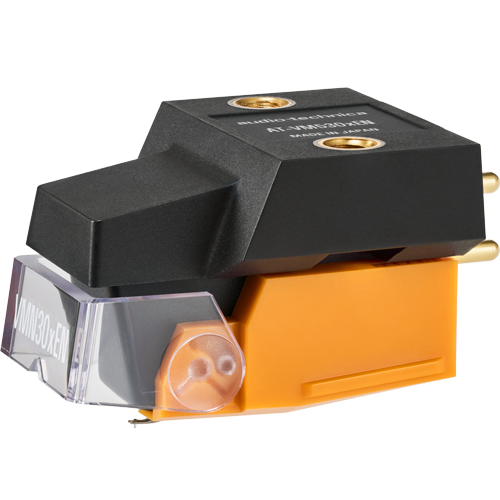

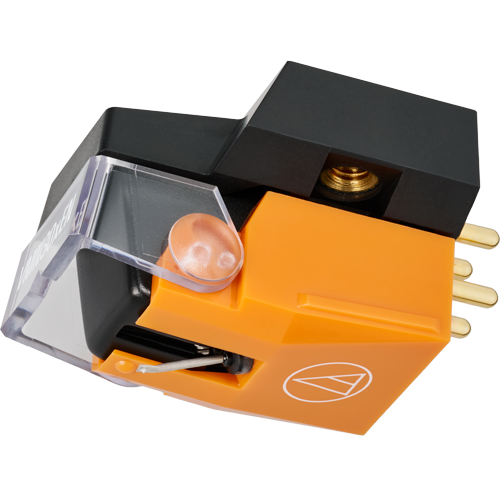

AT-VM530xEN Dual Moving Magnet Cartridge

• Frequency Response: 20 to 25,000 Hz
• Channel Separation: 25 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Tracking Force: 1.8 to 2.2 g (2.0 g standard)
• Recommended Load Impedance: 47 k ohms
• Coil Impedance: 3.2 k ohms (1 kHz)
• DC Resistance: 750 ohms
• Coil Inductance: 480 mH (1 kHz)
• Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
• Output Balance: 1.5 dB (1 kHz)
• Cantilever: Aluminum pipe
• Static Compliance: 23 x 10-6 cm/dyne
• Dynamic Compliance: 7 x 10-6 cm/dyne (100 Hz)
• Recommended Load Capacitance: 150 to 250 pF
• Replacement Stylus: AT-VMN10xCB (sold separately)*
• Stylus Curvature Radius: 0.3 x 0.7 mil
• Type: VM
• Weight: 7.2 g

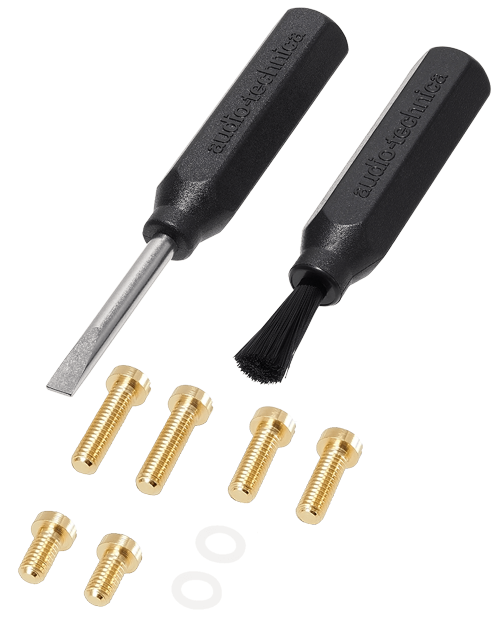

Accessories Included: Cartridge installation screws** (M2.6) (10.0 mm (0.39”) x 2, 8.0 mm (0.31”) x 2, 5.0 mm (0.20”) x 2), washer x 2



*The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.

**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
Цена
428.33 лв
€ 219.00
Купи
Наличност:
На склад
Гаранция: 24 месеца
бр.
Продуктът е наличен в
• София, Магазин YAMAHA
бул. "Искърско шосе" 7
• София, Магазин MusicWorld.bg
бул. "Проф. Цветан Лазаров" 74А
Полезна информация:
s://eu.audio-technica.com
В категории:
Moving Magnet Cartridges
