Audio-Technica Hi-Fi & Phono AT-VM740xML/H
Описание:

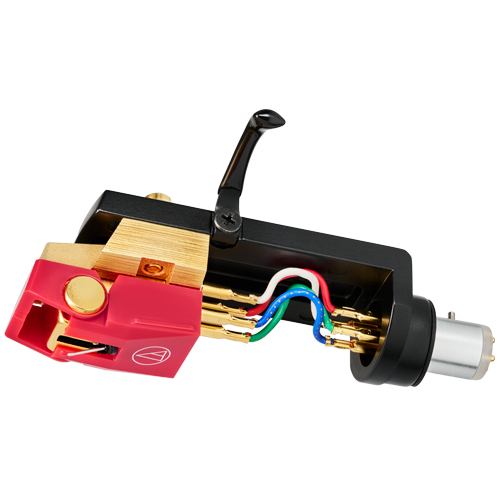

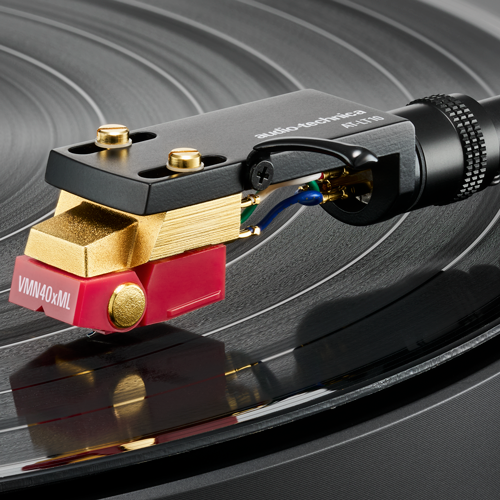

Dual Moving Magnet Cartridge Nude Microlinear stylus with Headshell


Features:

• AT-VMx dual moving magnet cartridge with microlinear stylus

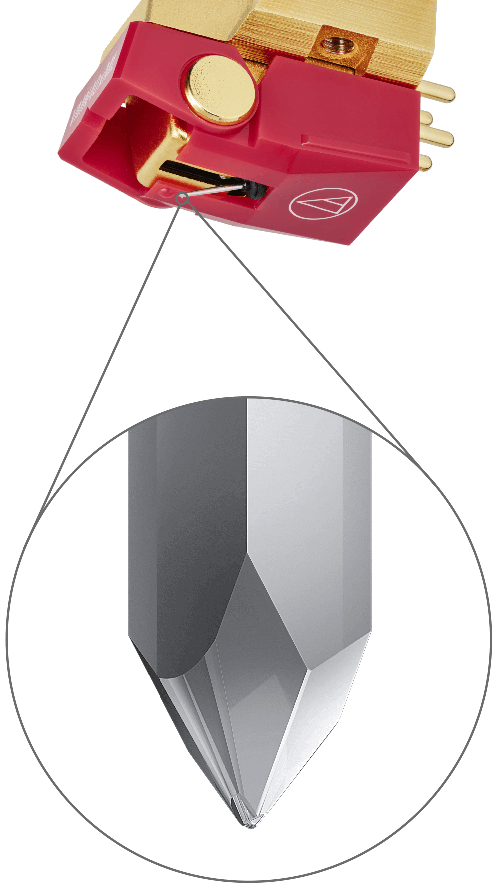

• Microlinear stylus tracks the record groove with incredible accuracy, providing more nuanced sound reproduction than elliptical and conical styli
• Paratoroidal coils improve generating efficiency for enhanced channel separation, channel balance, and transient response
• PCUHD (Pure Copper Ultra High Drawability) coils – and fewer coil turns – deliver highly responsive, three-dimensional sound reproduction with excellent transient response
• Center shield plate between the left and right channels reduces crosstalk for clear stereo sound
• Die-cast aluminum housing reduces vibrations and resonance
• Threaded inserts make cartridge easier to mount, especially to integrated tonearms
• V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
• Aluminum tapered cantilever reduces mass near the stylus tip for quicker signal transmission
• Compatible with any turntable headshell that accepts 1/2" cartridges
• Compatible with most AT-VMx series replacement styli,* offering a wide choice of options for every budget and application



Specifications:

AT-VM740xML Dual Moving Magnet Cartridge

• Frequency Response: 20 to 25,000 Hz
• Channel Separation: 25 dB (1 kHz)
• Vertical Tracking Angle: 20°
• Tracking Force: 1.8 to 2.2 g (2.0 g standard)
• Stylus Construction: Nude Microlinear
• Recommended Load Impedance: 47 k ohms
• Coil Impedance: 3.2 k ohms (1 kHz)
• DC Resistance: 750 ohms
• Coil Inductance: 480 mH (1 kHz)
• Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
• Output Balance: 1.0 dB (1 kHz)
• Cantilever: Aluminum tapered pipe
• Static Compliance: 20 x 10-6 cm/dyne
• Dynamic Compliance: 7 x 10-6 cm/dyne (100 Hz)
• Recommended Load Capacitance: 150 to 250 pF
• Replacement Stylus: AT-VMN40xML* (sold separately)
• Stylus Curvature Radius: 2.2 x 0.12 mil
• Type: VM
• Weight: 8.8 g

AT-LT10 Universal Headshell

• Universal1/2"-mount headshell for 4-pin turntable cartridges with or without threaded inserts
• Ultra-lightweight aluminum die-cast body keeps vibration to the bare minimum
• Elongated through holes enable precise cartridge positioning and overhang adjustment
• OFC (oxygen-free copper) lead wires for exceptional sound quality
• Slip-resistant finger lift allows stylus to be placed precisely on the record
• Includes mounting screws


Accessories Included: Cartridge installation screws** (M2.6) (10.0 mm (0.39”) ? 2, 8.0 mm (0.31”) ? 2, 5.0 mm (0.20”) x 2), washer x 2, Non-magnetic screwdriver, Brush

*The replacement stylus of this product is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes.

**Cartridge installation screws (5.0 mm (0.20”)) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box.
