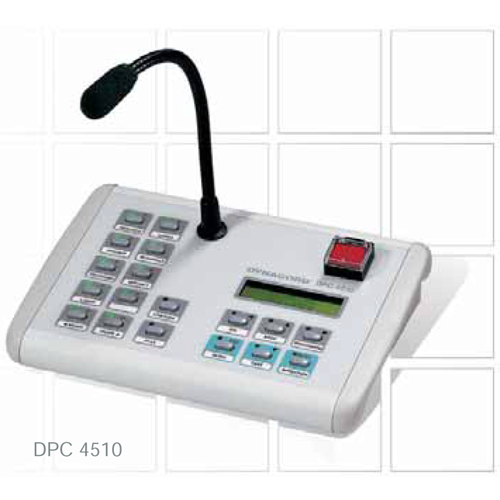

Dynacord ELA (100V) DPC 4510
Описание:
Promatrix 4000 Paging Console 10 Lines
DPC 4510 is a dedicated PROMATRIX, processor-controlled Paging station with several monitoring functions including the microphone. All keys are programmable. Line monitoring for the audio cabling as well as for RS 485 control lines provide early recognition and signaling of line interrupts and short circuits. The configuration of the paging consoles are accomplished via PROMATRIX® Designer software. All paging consoles have CE approval as well as UL and CSA recognition and are EN 60849 / VDE 0828 conformable in combination with the PROMATRIX® system. The paging station employs gooseneck microphone, 6 function and 10 selection keys as well as a covered alarm key. 2 lines x 16 characters LC display, provides information for the operator. Extension of the DPC 4510 is possible through DPC 4350 – an extension console with 50 selection keys.
Specifications:
Operating Voltage 24 VDC -10 / +30%
Power Consumption 90mA
LF - Input, external
PTT - Microphone (bridges A & B closed) -52dBu
Line (default) 0dBu
LF-Output (electronically balanced) +6 dBu
Alarm Key with Cover, sealable
6 function keys
10 selection keys
Connection RJ-45
Connection Cord, supplied 3m
LC-Display 2 x 16 characters -
Temperature Range +5°C -40°C
Dimensions of the Enclosure (W x D x H) 225 x 160 x 65 mm
Gooseneck dimensions (DxL): 8 x 200mm
Weight 1.5 kg
Color gray-white RAL 9002
Micro structure finish
DPC 4510 is a dedicated PROMATRIX, processor-controlled Paging station with several monitoring functions including the microphone. All keys are programmable. Line monitoring for the audio cabling as well as for RS 485 control lines provide early recognition and signaling of line interrupts and short circuits. The configuration of the paging consoles are accomplished via PROMATRIX® Designer software. All paging consoles have CE approval as well as UL and CSA recognition and are EN 60849 / VDE 0828 conformable in combination with the PROMATRIX® system. The paging station employs gooseneck microphone, 6 function and 10 selection keys as well as a covered alarm key. 2 lines x 16 characters LC display, provides information for the operator. Extension of the DPC 4510 is possible through DPC 4350 – an extension console with 50 selection keys.
Specifications:
Operating Voltage 24 VDC -10 / +30%
Power Consumption 90mA
LF - Input, external
PTT - Microphone (bridges A & B closed) -52dBu
Line (default) 0dBu
LF-Output (electronically balanced) +6 dBu
Alarm Key with Cover, sealable
6 function keys
10 selection keys
Connection RJ-45
Connection Cord, supplied 3m
LC-Display 2 x 16 characters -
Temperature Range +5°C -40°C
Dimensions of the Enclosure (W x D x H) 225 x 160 x 65 mm
Gooseneck dimensions (DxL): 8 x 200mm
Weight 1.5 kg
Color gray-white RAL 9002
Micro structure finish
