Dynacord ELA (100V) DPA 4120
Описание:

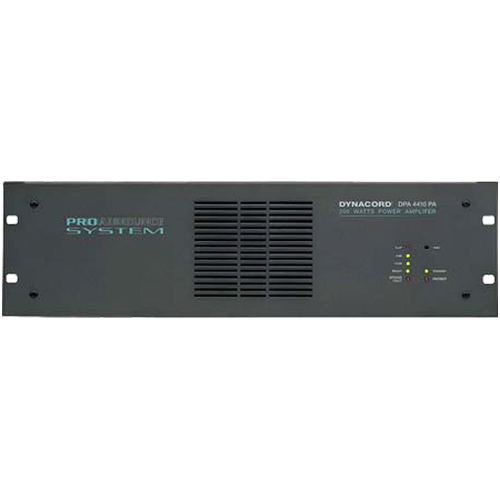

Promatrix 4000 Power Amplifier 1x200W/100V
Single-channel power amplifier with an output of 200 watts power capacity,
according to the IEC 268-3 / 19.4 standard, part of the PROMATRIX® Series.
It is possible to order the DPA 4120 / DPA 4140 power amplifiers either with
the standard input module or with a microprocessor-controlled remote control module
which provides the full support of their remote control and remote monitoring features.
Control and monitoring are accomplished through the RS-485 remote interface of the
DPM 4000 PROMATRIX® Manager.
DPA 4120 supports the following remote-functions:
Control:
Input level by the use of a programmable level control
Mute function
Mains ON/OFF with programmable, delayed switching
Battery supply ON/OFF
Monitor signal routing (input or output) to the monitor bus system
Pilot tone signal ON/OFF.
Monitoring:
Thermal overload of the power supply unit
Thermal overload of the power amplifier stage
Input level
Ground-fault
Pilot tone signal
Output level
Speaker lines (short-circuit, interrupt, impedance deviation).
Specifications
Input Characteristics: balanced
Nominal Input Level: 775 mV / 0 dBu
Nominal Input Impedance: >10kOhm
Power Output Characteristics: balanced, floating
Nom. Output Power: 200 W (acc. to IEC 268-3 / 19.4)
Nom. Load Impedance: 50Ohm/100V, 25Ohm/70V, 12.5Ohm/50V, 4Ohm/28V
Frequency Response: 60 Hz .. 20 kHz
Distortion @ 1kHz and Nominal Output Power ? 1 %
Monitor Output Characteristics: electronically balanced
Dimensions (W x H x D): 483 x 132 x 345 mm, 19”/3 HU
Installation Depth without Connectors 340mm
Weight: 13.2kg
Color: anthracite
Single-channel power amplifier with an output of 200 watts power capacity,
according to the IEC 268-3 / 19.4 standard, part of the PROMATRIX® Series.
It is possible to order the DPA 4120 / DPA 4140 power amplifiers either with
the standard input module or with a microprocessor-controlled remote control module
which provides the full support of their remote control and remote monitoring features.
Control and monitoring are accomplished through the RS-485 remote interface of the
DPM 4000 PROMATRIX® Manager.
DPA 4120 supports the following remote-functions:
Control:
Input level by the use of a programmable level control
Mute function
Mains ON/OFF with programmable, delayed switching
Battery supply ON/OFF
Monitor signal routing (input or output) to the monitor bus system
Pilot tone signal ON/OFF.
Monitoring:
Thermal overload of the power supply unit
Thermal overload of the power amplifier stage
Input level
Ground-fault
Pilot tone signal
Output level
Speaker lines (short-circuit, interrupt, impedance deviation).
Specifications
Input Characteristics: balanced
Nominal Input Level: 775 mV / 0 dBu
Nominal Input Impedance: >10kOhm
Power Output Characteristics: balanced, floating
Nom. Output Power: 200 W (acc. to IEC 268-3 / 19.4)
Nom. Load Impedance: 50Ohm/100V, 25Ohm/70V, 12.5Ohm/50V, 4Ohm/28V
Frequency Response: 60 Hz .. 20 kHz
Distortion @ 1kHz and Nominal Output Power ? 1 %
Monitor Output Characteristics: electronically balanced
Dimensions (W x H x D): 483 x 132 x 345 mm, 19”/3 HU
Installation Depth without Connectors 340mm
Weight: 13.2kg
Color: anthracite
