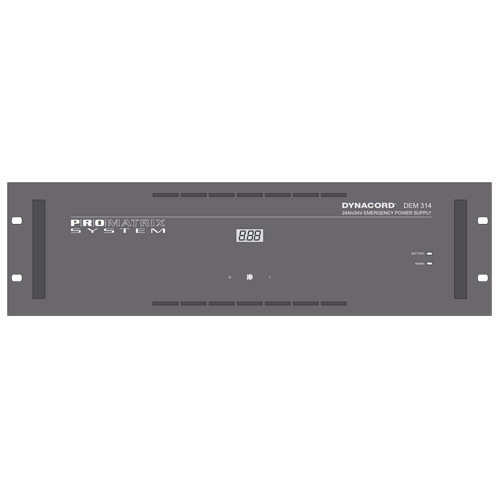

Dynacord ELA (100V) DEM 314_SELL
Описание:
Battery charger unit + battery 24V/26Ah
The DEM 314 battery module with charging unit contains entirely maintenance-free, location-independent lead batteries with fixed electrolyte and a capacity of 26 Ah at a rated voltage of 24 V. Its integrated charging unit is apt for cycle, standby-parallel and permanent charging mode.
The features of automatically limiting charging voltage and temperature tracking support the preservation of the battery life cycle. The integrated 3-digit LC display is optionally switchable to be either current or voltage indicator.
The DEM 314 is the ideal and compact solution for uninterruptible operation during mains power failure.
Specifications:
Operating Voltage: 230 V, -15 % / +10 %
Frequency Range: 50…60 Hz
Nominal Output Voltage: 24 V DC
Nominal Capacity (for 20hrs): 26 Ah
Charging Voltage for 2.3 V-cell: 27.6 V
Max. Discharge Current: 50 A
Standby Current at Mains Failure: 150 mA
Number of Outputs: 5
Ambient Temperature: 5…40° C
Dimensions (w x h x d): 483 x 133 x 370 (335) mm, 19“ 3 HU
Weight: 26.6 kg (with batteries); 8.5 kg (without batteries)
Color: Anthracite
The DEM 314 battery module with charging unit contains entirely maintenance-free, location-independent lead batteries with fixed electrolyte and a capacity of 26 Ah at a rated voltage of 24 V. Its integrated charging unit is apt for cycle, standby-parallel and permanent charging mode.
The features of automatically limiting charging voltage and temperature tracking support the preservation of the battery life cycle. The integrated 3-digit LC display is optionally switchable to be either current or voltage indicator.
The DEM 314 is the ideal and compact solution for uninterruptible operation during mains power failure.
Specifications:
Operating Voltage: 230 V, -15 % / +10 %
Frequency Range: 50…60 Hz
Nominal Output Voltage: 24 V DC
Nominal Capacity (for 20hrs): 26 Ah
Charging Voltage for 2.3 V-cell: 27.6 V
Max. Discharge Current: 50 A
Standby Current at Mains Failure: 150 mA
Number of Outputs: 5
Ambient Temperature: 5…40° C
Dimensions (w x h x d): 483 x 133 x 370 (335) mm, 19“ 3 HU
Weight: 26.6 kg (with batteries); 8.5 kg (without batteries)
Color: Anthracite
