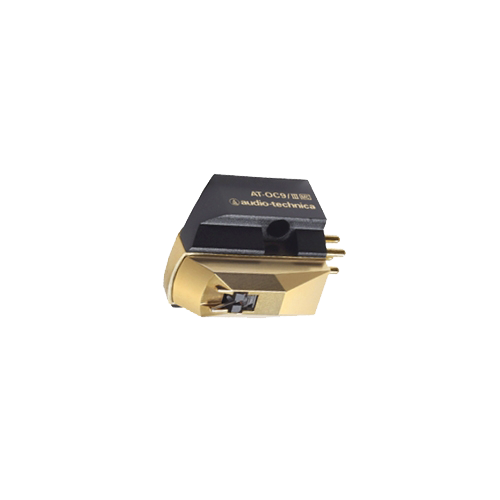

Audio-Technica Pickups AT-OC9ML3
Описание:
The OC9ML3 replaces the critically acclaimed OC9MLII. Building on the enduring reputation of its predecessor, the OC9ML3 features a special line contact stylus embedded into a low profile solid boron cantilever, ensuring the music signals read by the tip of the stylus are transmitted reliably to the coils.
The OC9’s “VC mould” design ensures stability and rigidity whilst the dual moving coil offers excellent stereo separation and improved frequency response for long lasting performance.
The use of PCOCC wire (Pure Copper by Ohno Continuous Casting), a special copper with virtually no transverse crystal barriers to impede signal transmission, perfects the performance of the advanced
dual coil design.
Type: Moving coil (MC)
Frequency response: 15 to 50,000 Hz
Output voltage: 0.4mV (1 kHz, 5 cm/sec.)
Channel separation: 30 dB (1 kHz)
Channel balance: 0.5 dB (1 kHz)
Tracking force: 1.8 to 2.2 g (standard: 2.0 g)
Coil impedance: 12?(1kHz)
DC resistance: 12 ?
Recommended load impedance: Min. 100 ? (when head amplifier is connected)
Coil inductance: 25?H (1 kHz)
Static compliance: 35 ? 10 - 6 cm/dyne
Dynamic compliance: 18 ? 10 - 6 cm/dyne (100 Hz)
Stylus: Line contact stylus (curvature radius: 40 ? 7?m)
Cantilever: 0.26 mm diameter solid boron
Vertical tracking angle: 23 degrees
Dimensions: 17.3(H) ? 16.8(W) ? 25.7(L) mm
Weight: 8.0 g
The OC9’s “VC mould” design ensures stability and rigidity whilst the dual moving coil offers excellent stereo separation and improved frequency response for long lasting performance.
The use of PCOCC wire (Pure Copper by Ohno Continuous Casting), a special copper with virtually no transverse crystal barriers to impede signal transmission, perfects the performance of the advanced
dual coil design.
Type: Moving coil (MC)
Frequency response: 15 to 50,000 Hz
Output voltage: 0.4mV (1 kHz, 5 cm/sec.)
Channel separation: 30 dB (1 kHz)
Channel balance: 0.5 dB (1 kHz)
Tracking force: 1.8 to 2.2 g (standard: 2.0 g)
Coil impedance: 12?(1kHz)
DC resistance: 12 ?
Recommended load impedance: Min. 100 ? (when head amplifier is connected)
Coil inductance: 25?H (1 kHz)
Static compliance: 35 ? 10 - 6 cm/dyne
Dynamic compliance: 18 ? 10 - 6 cm/dyne (100 Hz)
Stylus: Line contact stylus (curvature radius: 40 ? 7?m)
Cantilever: 0.26 mm diameter solid boron
Vertical tracking angle: 23 degrees
Dimensions: 17.3(H) ? 16.8(W) ? 25.7(L) mm
Weight: 8.0 g
