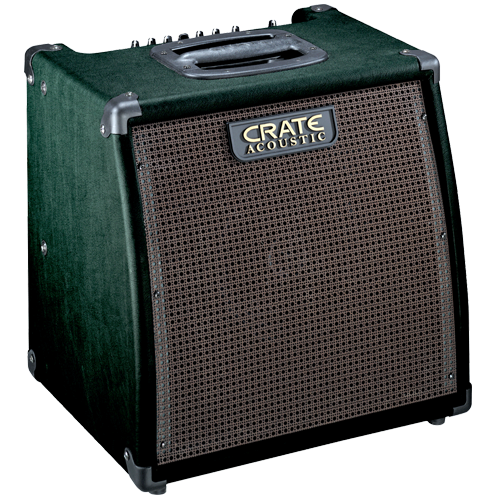

Acoustic guitar combo - 30 watts RMS • 8" high fidelity woofer and dome tweete • Two channels • 3-band EQ and contour (mid frequency) control • 8 digital effects with level control • Effects loop
Output Power Rating: 30 watts RMS @ 1% distortion
High: +/-15dB @ 10kHz
Mid: +/-15dB @ 400–1.2kHz (Contour)
Low: +/-15dB @ 80Hz
Input Impedance: 1.5M ohm
Input Sensitivity: 20mV RMS
Sens. to Line out: 20mV
Max Input Signal: 10v RMS (28v peak to peak)
Insert Jack: Line Out .7v RMS • Line In .7v RMS
Insert Jack Input Impedance: 44k ohm
Insert Jack Output Impedance: 2.2k ohm
Line Out Output Impedance: 2.2k ohm (Lo-Z) • 2.2k ohm (Hi-Z)
Internal Speaker: 8” Poly cone coaxial with dome tweeter • 4 ohms • 50 watts • 1” voice coil
