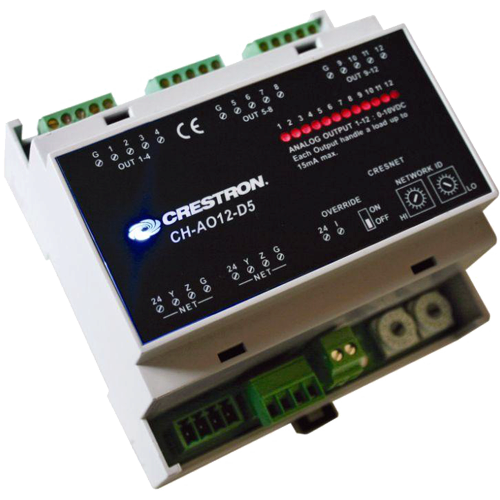

Crestron CH-AO12-D5
Описание:
12 channel output module
The CH-AO12-D5 is a CRESNET network unit, which makes an easy (de-) centralized interfacing possible between the CRESTRON system and analog 0-10V controllable equipment (SP4 and SP12 dimmer). It is prepared for DIN rail mounting.
The CH-AO12 can control a voltage range between 0-10V. Each single output can handle up to max 15 mA, all twelve outputs together max. 150 mA.
The unit has an override input which allows the setting of all four channels to 100% for testing or emergency purposes.
The new 12 channel 0-10V analog output module takes only 5 DIN-rail spaces.
100% conform DIN-rail and 100% RoHS-compliant
The CH-AO12-D5 is a CRESNET network unit, which makes an easy (de-) centralized interfacing possible between the CRESTRON system and analog 0-10V controllable equipment (SP4 and SP12 dimmer). It is prepared for DIN rail mounting.
The CH-AO12 can control a voltage range between 0-10V. Each single output can handle up to max 15 mA, all twelve outputs together max. 150 mA.
The unit has an override input which allows the setting of all four channels to 100% for testing or emergency purposes.
The new 12 channel 0-10V analog output module takes only 5 DIN-rail spaces.
100% conform DIN-rail and 100% RoHS-compliant
